PRODUCTS > 5000l Titanium Electric heating Autoclave Reactor

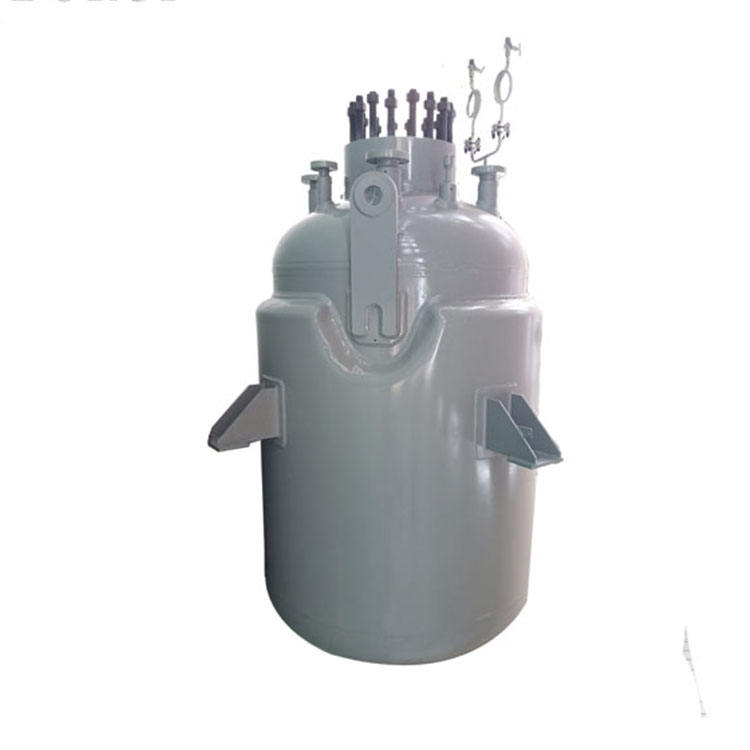

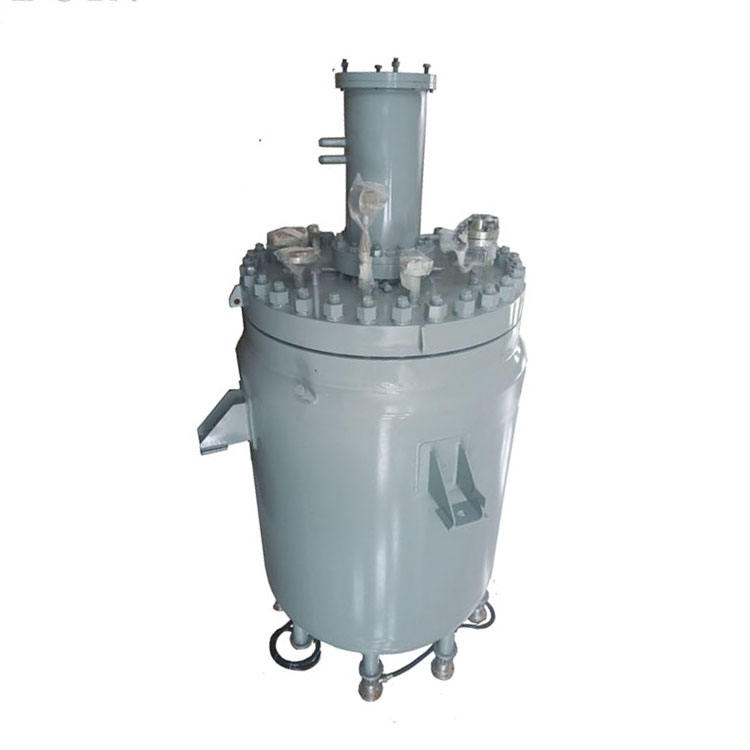

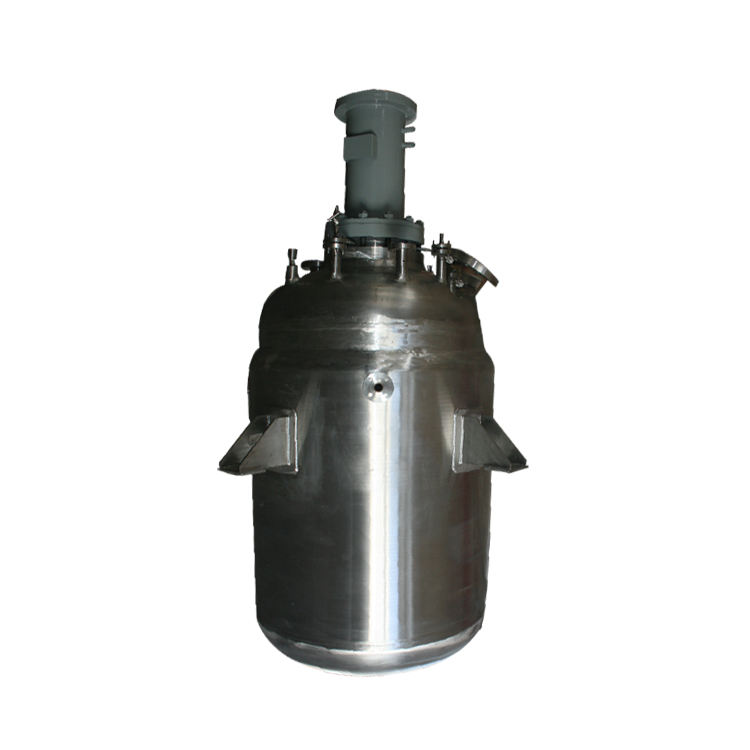

5000l Titanium Electric heating Autoclave Reactor

  • H81759afd73ca43eea6c5ce280470722bg.jpg
  • H06fce403d7fa4762ae4e9d46e961c625d.jpg
  • He19538ec520d4411b708691ced83a53dr.jpg
  • H4d43018382c1425e8c49026f660ae8e25.jpg
  • H81759afd73ca43eea6c5ce280470722bg.jpg
  • H06fce403d7fa4762ae4e9d46e961c625d.jpg
  • He19538ec520d4411b708691ced83a53dr.jpg
  • H4d43018382c1425e8c49026f660ae8e25.jpg
    • 1
    • 2
    • 3
    • 4


NO.NameParameter
1Capacity50L - 50000L
2MaterialStainless steel SUS304, SS316L, Titanium, Nickel, Zirconium, Hastelloy C-276, C22, B2, B3, Inconel 600, Inconel 625, Monel,
Tantalum, cladding plate …etc.
3Design pressure-0.01MPa ~ 50MPa
4Design temperature-200℃ - 800℃
5Stirrer rotation speed0-750rpm
6Motor power500w ~ 125 kw
7Sealing methodMagnetic seal, mechanical seal
8Heating methodElectric heating, Jacket circulating Thermo Oil or steam, far-infrared heating
9Agitator OptionsAnchor, Impeller, Turbine, Peddle, Propeller, High speed disperser … etc.
10OthersHeat Exchanger/Condenser, raw material feeding tank, receiving tanks, vacuum system, heating system, cooling system, platform,
valves ...etc. as option.
