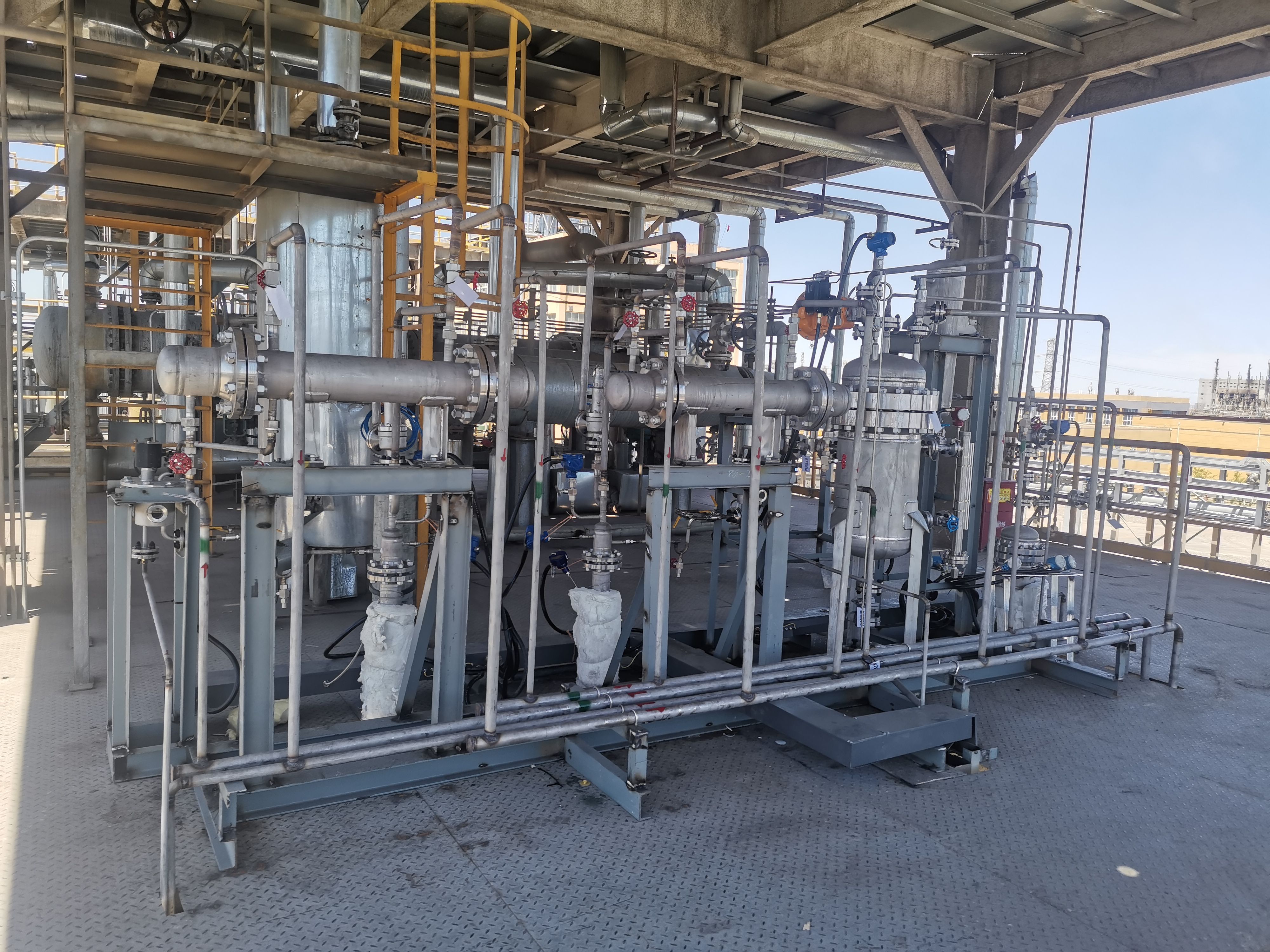

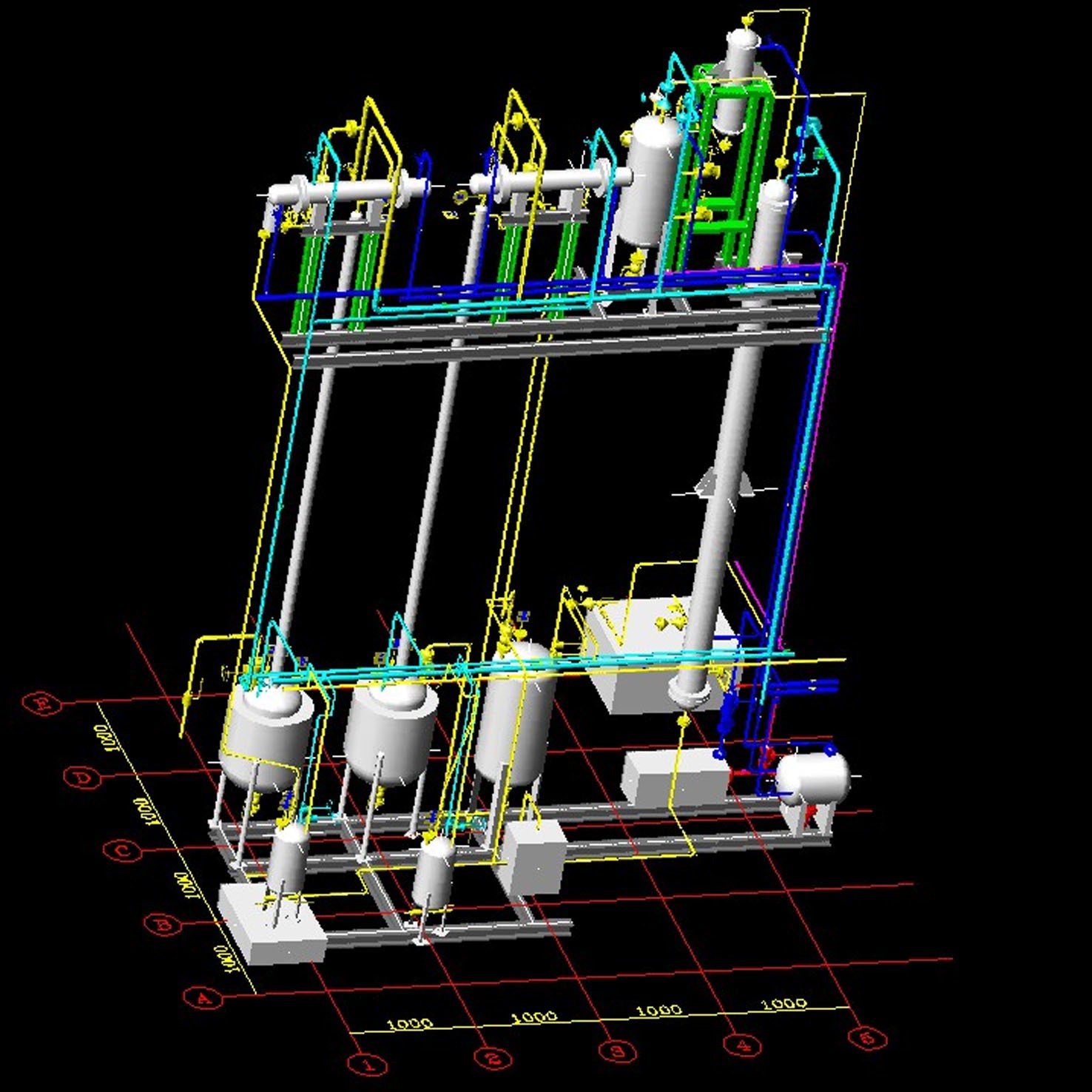

Double Rectification Tower Fixed bed Catalytic Synthesis Equipment
| NO. | Name | Parameter |
| 1 | Capacity | 100mL – 50L |
| 2 | Material | Customized as process: |
| Stainless steel SUS304, SS316L, Titanium, Nickel, Zirconium, Hastelloy | ||
| 3 | Design pressure | -0.1 ~ 60MPa |
| 4 | Design temperature | -200℃ - 800℃ |
| 5 | Agitator Type | Anchor, Impeller, Turbine, Peddle, Propeller, High speed disperser … etc. |
| 6 | Motor | Explosion proof or non-explosion proof, ordinary AC motor |
| 7 | Sealing method | Magnetic seal, Mechanical seal, packing seal |
| 8 | Heating method | Electric heating Furnace, Jacket |
| 9 | Cooling | Inside coil, jacket, jacket coil |
| 10 | Discharging method | Top discharging or bottom discharging |
| 11 | Control cabinet | 1. PID automatic temperature control, temperature accuracy +/- 1℃ |
| 2. Digital display of inside temperature and jacket temperature | ||
| 3. Digital display of the inside pressure | ||
| 4. Agitator speed digital display and adjustment | ||
| 5. Heating power adjustment. | ||
| 12 | Others | Condenser, constant pressure feed tank, receive tank is optional, PLC, |
| heating system, cooling system, valves, …etc. | ||
| Double Rectification Tower Fixed bed Catalytic Synthesis Equipment | ||
